Portable Interactive Device

PRODIGY Portable Interactive Device

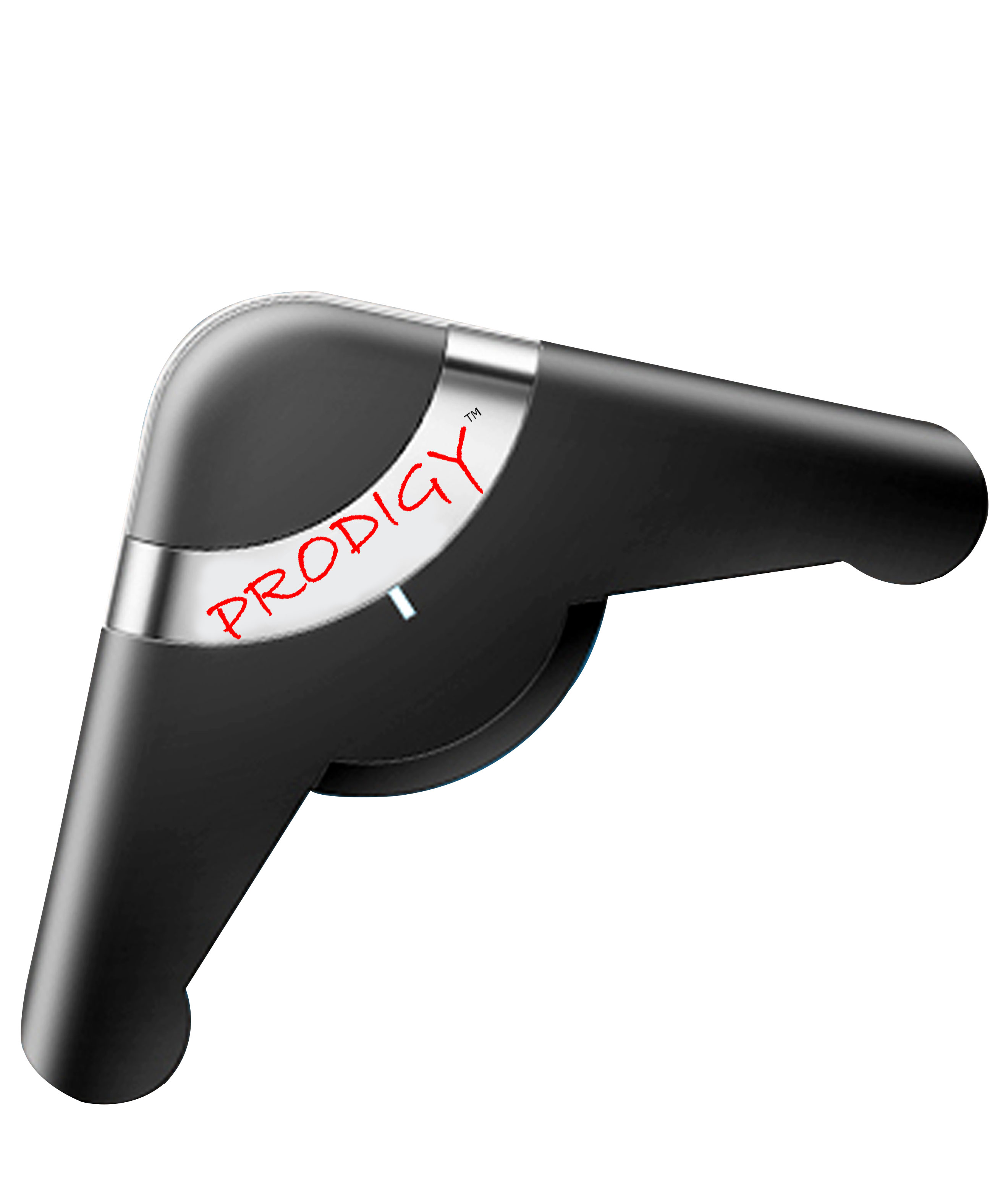

PRODIGY Portable ultrasonic interactive device is a gadget that converts any smooth surface into an interactive surface. In a classroom environment, It can convert just an ordinary smooth whiteboard or wall into an interactive surface. The said device integrated along with the PRODIGY Smart Classrooms enhances the teaching learning process to a new level between that of the teachers and the students.

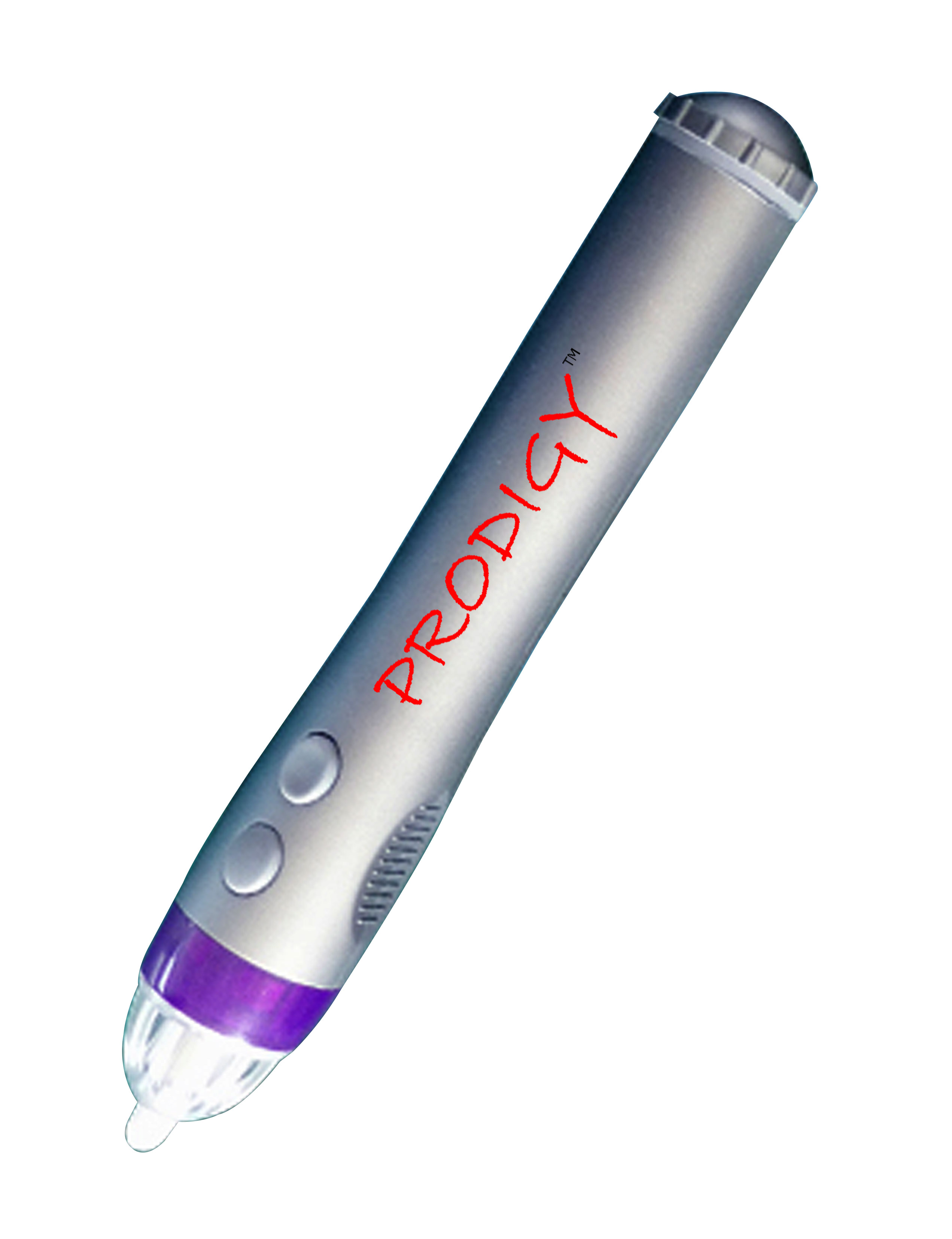

Prodigy Portable Ultrasonic Interactive Whiteboard device gets operated by an electronic stylus. It can be mounted onto the corner of a normal whiteboard or fixed to a wall with a smooth surface and when connected to the teacher’s computer system via a USB cable, the ultrasonic device converts the entire projection area from a projector connected to the teacher’s computer system.

Competitive Advantage:


  1. Flexible and easy installation possible
  2. Highly Portable
  3. Compact size, light weight, streamlined design
  4. Position of stylus accuracy is less than 0.03mm
  5. Writing speed is very fast and smooth, very nice handle feeling
  6. Active coverage is up to 100inch area (diagonal)
  7. Computer mouse could also be used as an Off-board stylus to support ease of operations
  8. Powerful teaching software with exhaustive library of images pre-loaded


Technical Specifications:

S No

Description

Specifications

1

Touch Technology

Ultrasound

2

Input Method

Ultrasound infrared electronic pen

3

Power Consumption

< 0.5 W, draws power from the computer itself

4

Interface

USB, without external power supply

5

Touch Resolution

9600 * 9600

6

Touch Area

100inch diagonal

7

Touch Accuracy

0.03 mm

8

Response Speed

3m/s

9

Calibration

High precision, advanced calibration

10

Operating System

Win XP/ Win 7/ Linux
